Beyond hosting and playing Minecraft i also have many other special interests, one of them is the study of electronics,

fun fact when we say electricity we are talking about the flow of electrons between atoms!!!

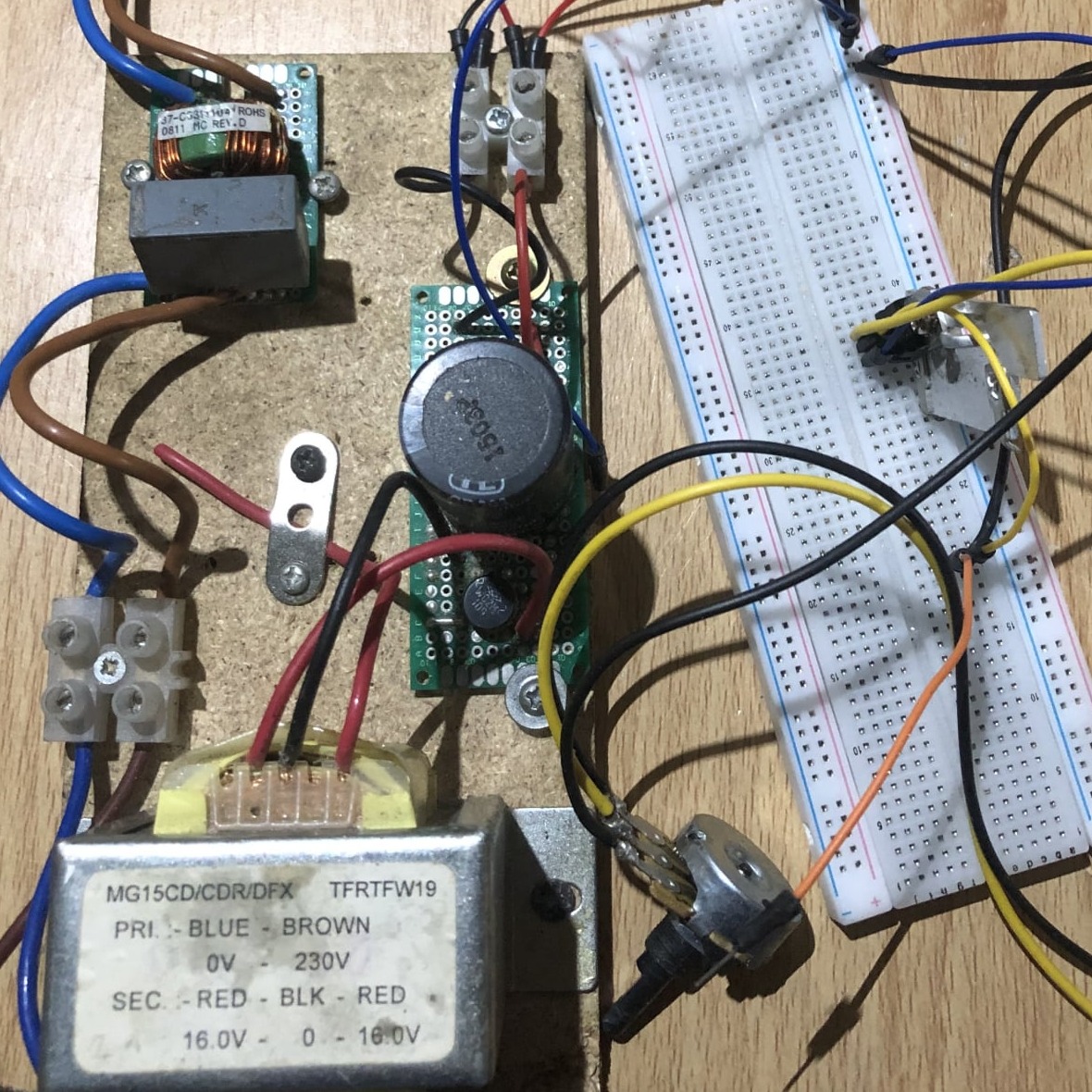

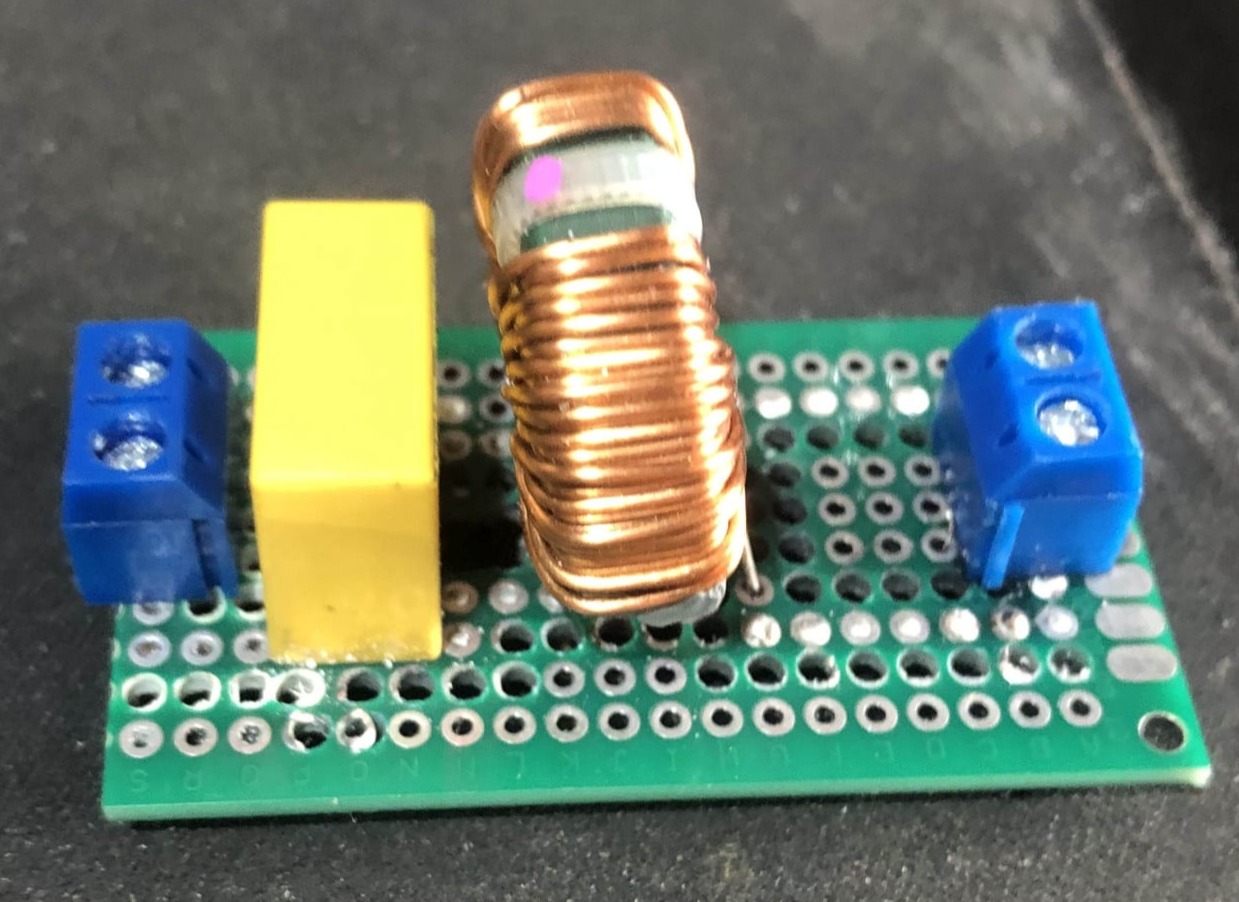

Pictured on the right is my prototype linear power supply, it includes the basics like a emi filtering stage using a common mode choke and an X2 class capacitor to block high frequency noise. that then goes into the transformer and the voltage is stepped down, its then rectified through the use of a full bridge rectifier and through the use of a large smoothing capacitor a smooth dc output is achieved, lastly an adjustable linear voltage regulator is added with a potentiometer to control the adjustment signal ultimately resulting in a variable linear power supply, its only a prototype so is not safe to pull large amounts of current but its there as a framework to model future circuits with.
